Home ? Product Center ? Other ? Switch ? Tactile Switch
The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.
The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.

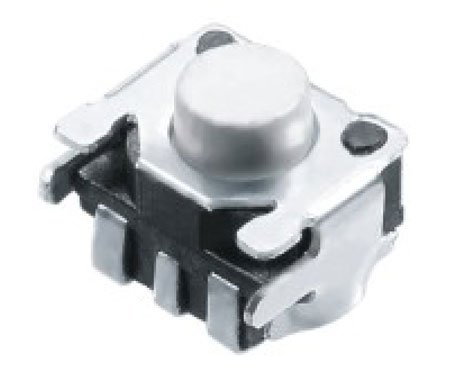

Horizontal Push Tactile Switches R1023

•  Rating：12VDC 50mA
•  Travel：0.2mm
•  Life：100,000 cycles
•  Contact Resistance：100mΩ MAX Initial
•  Insulation Resistance ：100mΩ min. 100VDC
•  Dielectric Strength：250VAC(50/60Hz)FOR 1MIN
•  Operating Force：2=180gf 3=260gf
•  Operating Temperature：-30℃ ~70℃

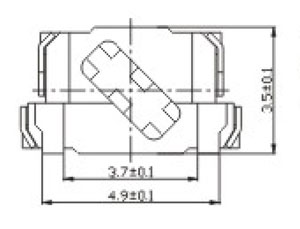

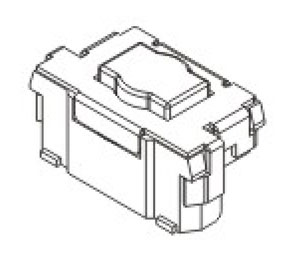

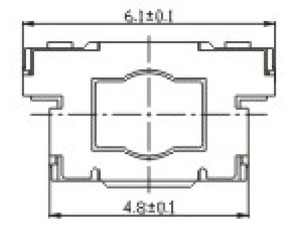

 Horizontal Push Tactile Switches R1023A Figure Tactile Switches R1023 Structure Diagram    Switch R1023 Structure Diagram    R1023 Structure Diagram



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Travel Life Operating Temperature Download
R1023-C-2/3-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.2mm 100,000 cycles -30℃ ~70℃ NULL
R1023-35-2/3-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.2mm 100,000 cycles -30℃ ~70℃ NULL
R1023-60-2/3-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.2mm 100,000 cycles -30℃ ~70℃ NULL
R1023-2-2/3-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.2mm 100,000 cycles -30℃ ~70℃ NULL
R1023-2-180-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.2mm 100,000 cycles -30℃ ~70℃ NULL
