The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.

The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.

Mini Horizontal Push Tactile Switches R10

• Rating：12VDC 50mA

• Travel：10.13mm

• Life：1100,000 cycles

• Contact Resistance：1100mΩ MAX Initial

• Insulation Resistance：1100mΩ min. 100VDC

• Dielectric Strength：1250VAC(50/60Hz)FOR 1MIN

• Operating Force：12=180gf 3=260gf

• Operating Temperature：1-30℃ ~70℃

Mini Horizontal Push Tactile Switches R10 Figure

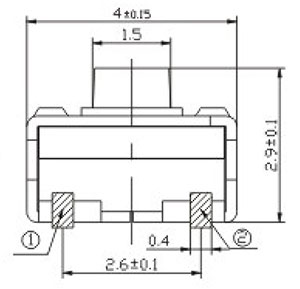

Mini Horizontal Push Tactile Switches R10 Structure Diagram

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Travel	Life	Operating Temperature	Download
R10-2030-29-180	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	2=180gf 3=260gf	0.13mm	100,000 cycles	-30℃ ~70℃	NULL
R10-2030-25-180	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	2=180gf 3=260gf	0.13mm	100,000 cycles	-30℃ ~70℃	NULL
R10-2040-G1	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	2=180gf 3=260gf	0.13mm	100,000 cycles	-30℃ ~70℃	NULL
R10-2446	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	2=180gf 3=260gf	0.13mm	100,000 cycles	-30℃ ~70℃	NULL
